Analysis Quickstart

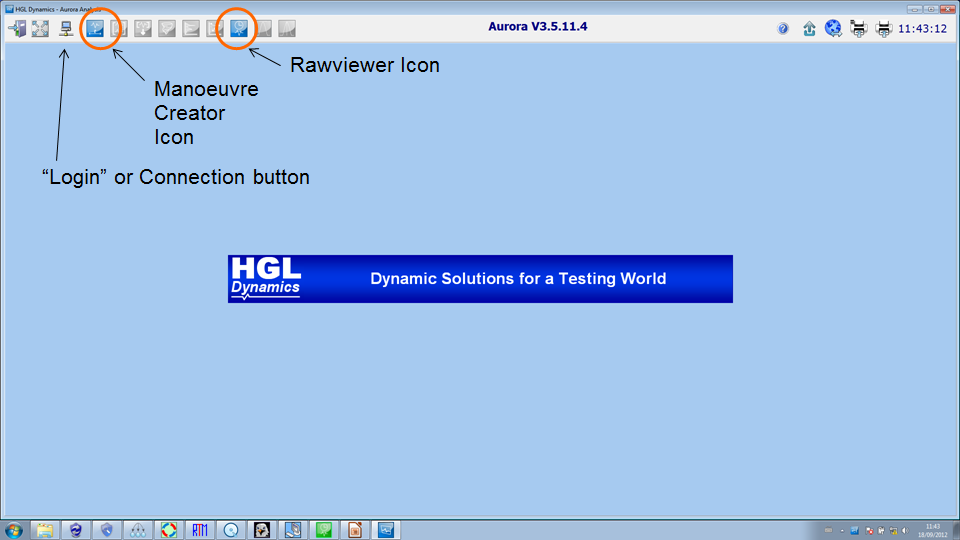

To use Aurora, click the connection button. Then click the “Connect” button in the dialog box that pops up. The username is “Administrator” the password is “admin”

Manoeuvre creator is used to review past recording and add missing manoeuvres. They cannot be deleted. Rawviewer allows the user to view the data of a Manoeuvre.

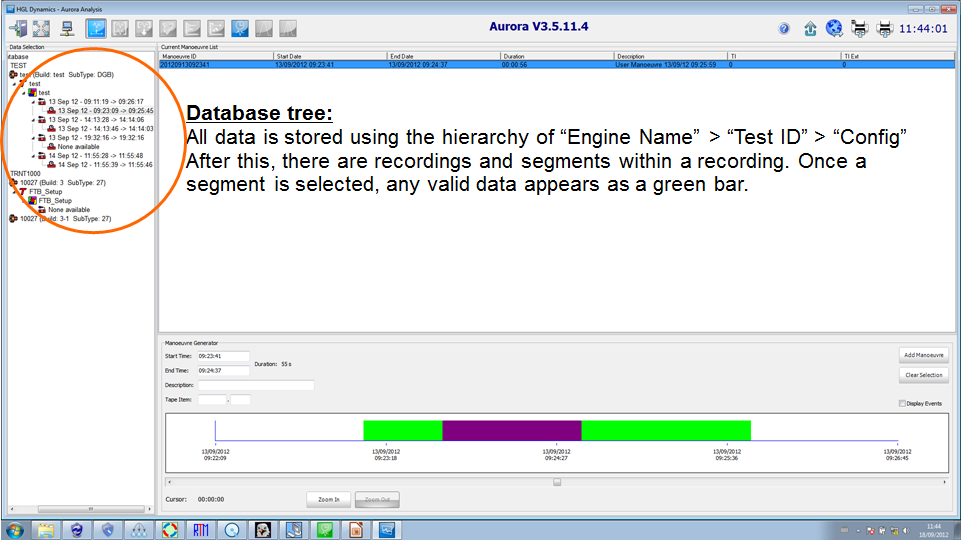

To add a manoeuvre, left click (and hold) in the green bar and drag. A different color section will appear. In the “Manoeuvre Generator” section, start and end times can be edited by hand. Also give a description and Tape Item number for ease of identifying the manoeuvre. Once finished, click “Add Manoeuvre” and it will be added to the manoeuvre list above.

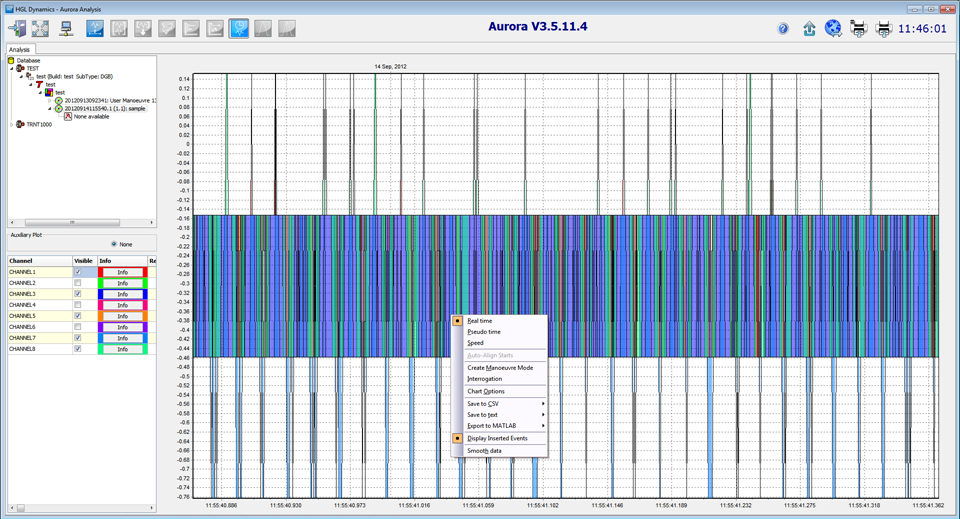

Rawviewer uses the same database tree for navigation, however after “configuration” the tree jumps straight to “manoeuvres”. All manoeuvres for a configuration can be seen at once. To view the data, select a manoeuvre. In the table below, the available channels for that manoeuvre will be listed. Select the channels to be viewed. In the plot on the right, it is possible to zoom in by making a left-click box to the right and to zoom out by making a left-click box to the left. A right click menu to export the data is also available.
