Dataviewer: Multiple Sessions

Up to 4  sessions can be opened at the same time in Data viewer and can be easily switched between or placed side by side for comparing different processed files.

1. Open the first desired Zmod or time history file in the standard way by clicking file > open > select processed file in the top left of Aurora.

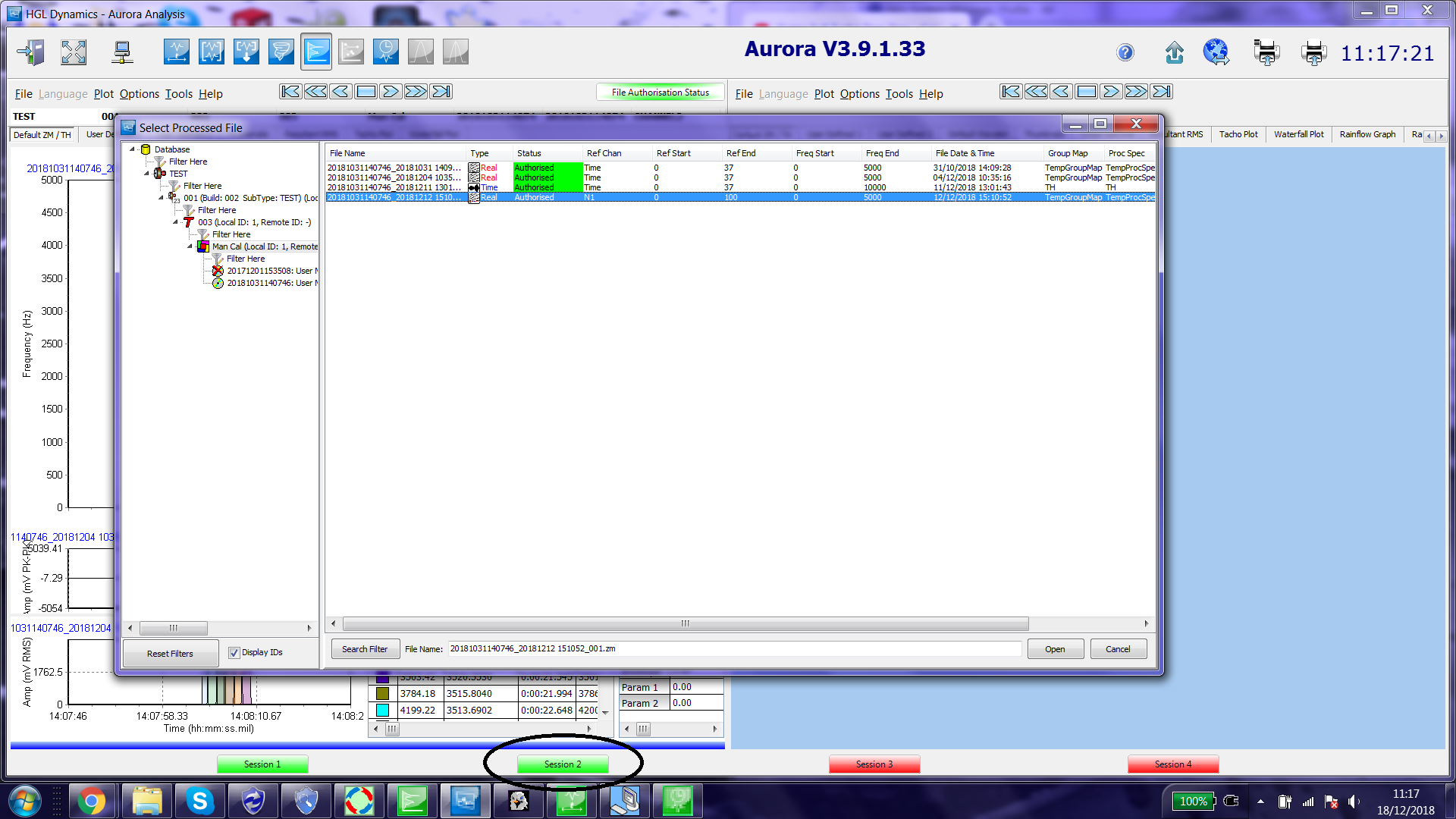

2. To open another session click 'Session 2' (circled below) at the bottom of Aurora.
3. The screen will be split into two halves and an open prompt will appear to open a processed file in the second session. Once the data for the second session has been opened the user may leave both sessions open to compare or may click on session 1 or 2 to hide them.

Note: If an active session is hidden by clicking on the Session number again the square will go from green back to red. It should be noted that although hidden any current zoom windows will remain as they were before it was hidden. For sessions 3 and 4 follow the same steps as above. To change which processed file in any session activate the session by clicking the session box so it shows green. Then in the file menu of the session needing changed go to File > Open
