All Purpose Conditioning

Description

The FE-1408-APC is a highly integrated multi-use board set, which extends the Dragonfly concept to include charge capability both Differential and Single Ended. With dynamic Constant Current and Constant Voltage supplies, coupled with IEPE conditioning including TEDS capability make this a complete measurement solution for a wide range of transducer and gauge installations.

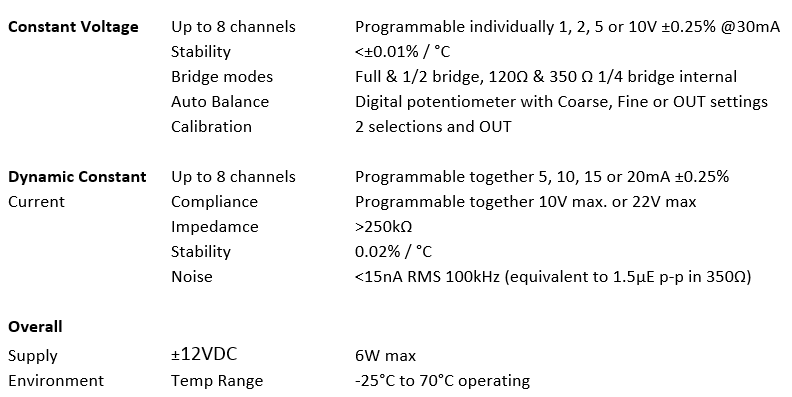

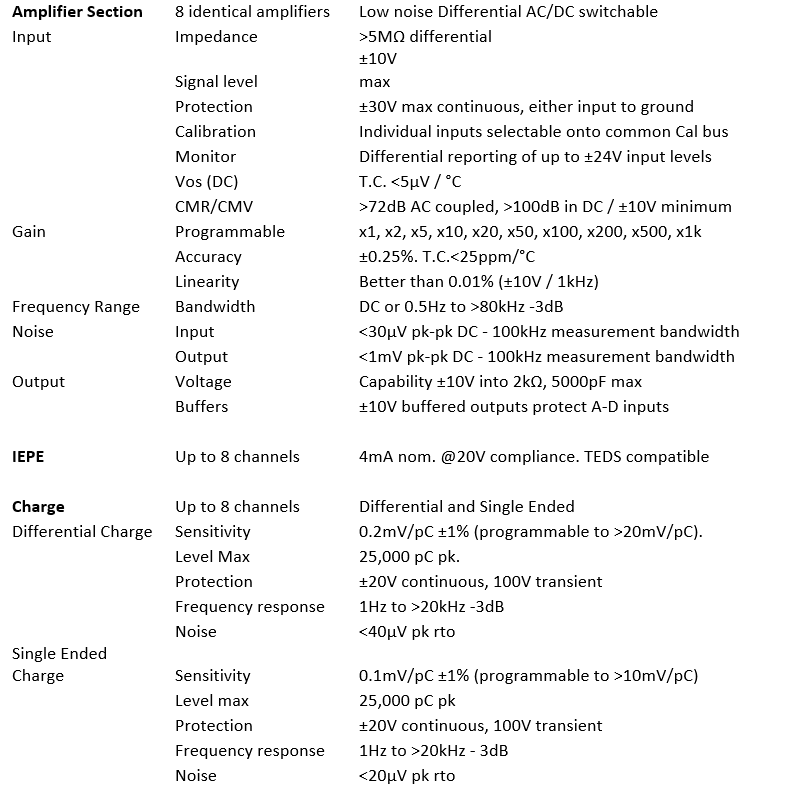

Specification
