Hawkeye: Peak Hold Bar Chart

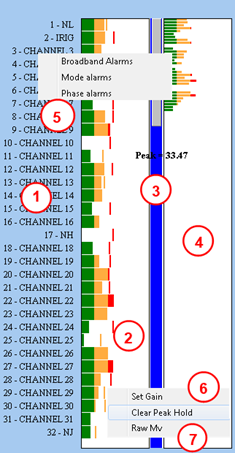

1. Channel number and name. 32 channels can be visible at one time.
2. Channel peak data: bar represents the current peak value; the peak-hold tidemark indicates the highest peak recorded. For each channel, the peak value is displayed as percentage of the limit level defined in the broadband settings.
3. Scroll bar to scroll down through the channels
4. Overview of the peak value of all the channels in the configuration.
5. Right click on a channel name to bring up the alarm popup menu. This allows the user to change the alarm settings during acquisition.
6. Right click on the channel peak data area to set the gain (i.e. amplitude scale as a percentage of the full scale), or reset the peak-hold tidemark.

The raw mV will show the peak data in mV rather than engineering unit. In this case, the peak value is displayed as a percentage of the acquisition card voltage input range.
