Database Tree

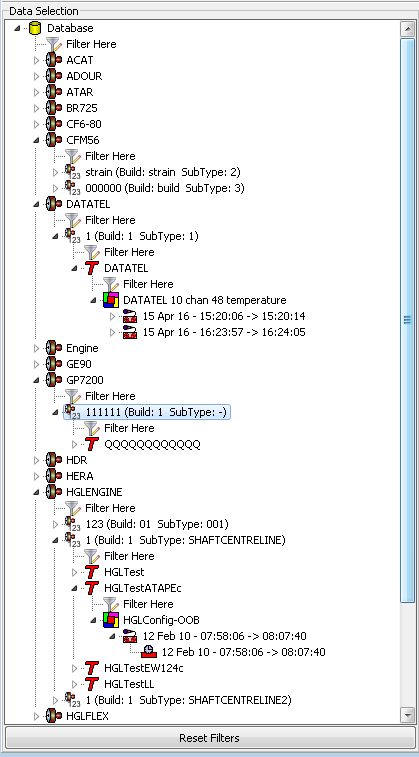

The database tree is a representation of the data accessible both locally as well as remotely. There are filtering capabilities at each of the following levels in order to more quickly access the desired recording:

To navigate through the database tree either Left-Click on the arrow or Double-Left-Click on the section you want expanded. Once a segment of data is selected manoeuvres can be created.

Remark 1: The Database Tree is unique and shared by all applications, but depending on the need of the application, it might be updated so that the last levels might be Configuration/Manoeuvre or Configuration/Recording/Segment.

Remark 2: When the cursor is positioned over a specific engine more details about that particular engine will be displayed in a hint window.
