Pegasus Overview

Key Features

• Ultimate in Portable Measurement
• 2-5 Channel Data Acquisition
• 0-80kHz Bandwidth, 90+ dB SNR
• 12 + Hours Recording Time (NiMh Batteries)
• On-board Storage (SD Cards to 128GB)
• Touch Screen Control & Display
• USB For Tethered Operation, Charging, Data Offload

Introduction

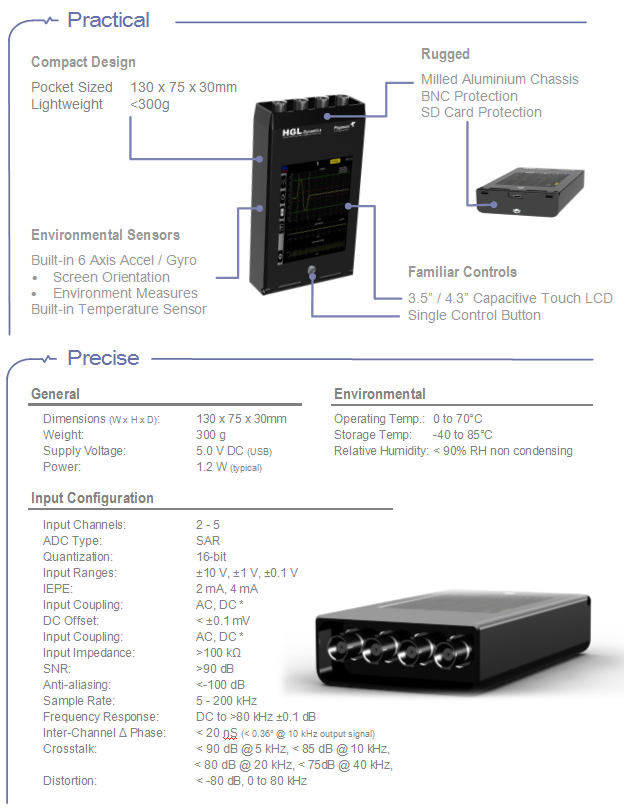

Pegasus represents the ultimate in handheld / portable measurement equipment. Within its ultra-compact chassis it provides between 2 and 5 analogue inputs each with Voltage and IEPE conditioning. Each channel is supported by a separate ADC allowing truly synchronous 16-bit acquisition up to 80kHz bandwidth, this is unheard of in a unit of this size.

Pegasus also includes on-board storage, using SD card technology, up to 128 GBytes which represents 18 hours of recording on 5 channels at 80kHz bandwidth. A USB connection  provides the ability to operate in tethered mode when attached to a PC; data captured on the SD card can be uploaded quickly if required.

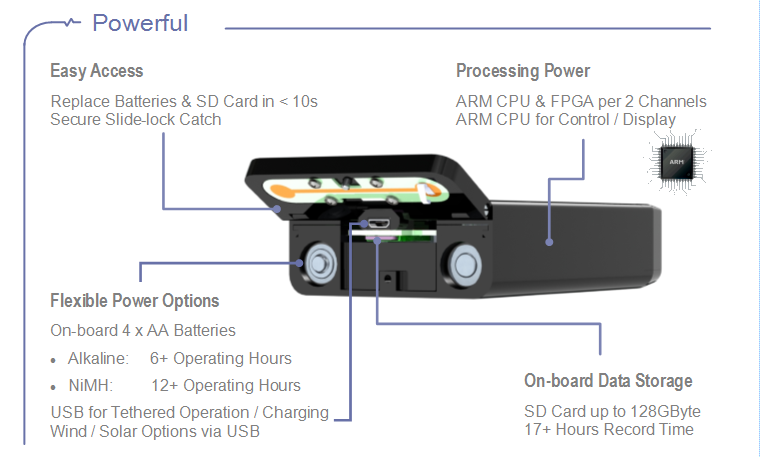

Power is supplied by 4 on-board AA cells either Alkaline (6+ hours) or NiMh rechargeable (12+ hours), the latter can even be recharged on-board when connected to a PC / charger via the USB.

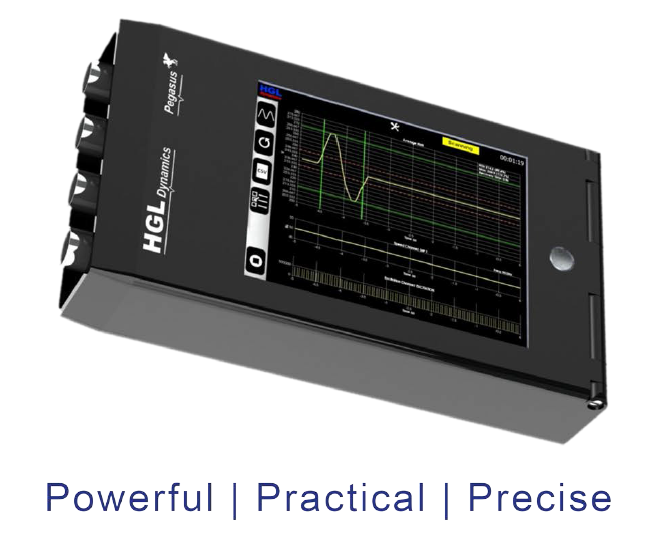

The built-in 3.5” / 4.3” touchscreen provides a modern user experience when configuring or acquiring data; additionally unique within this class of equipment is the ability to monitor the input signals via the integrated real-time monitoring displays.

High-end Data Acquisition, built-in monitoring, on-board storage and innovative touch control all in a pocket sized unit, Pegasus takes flight!
